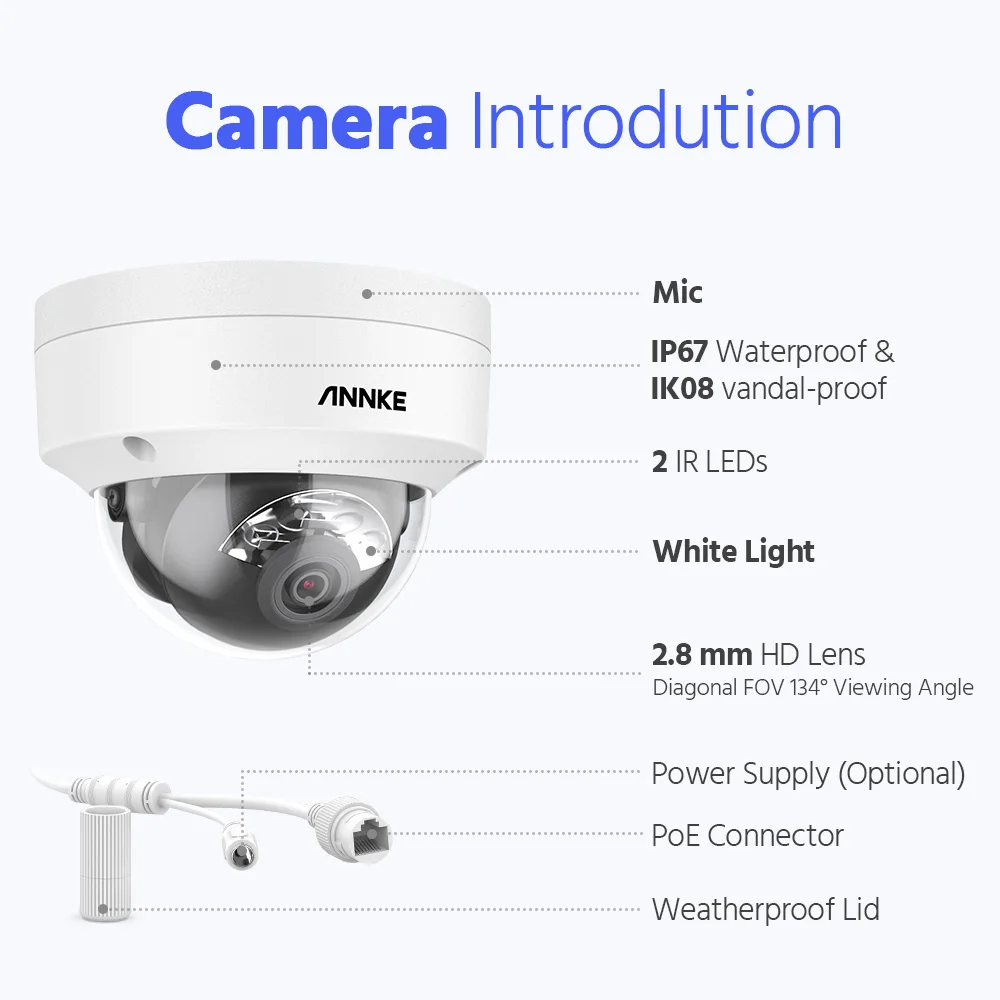

★ 12MP smart dual light dome network camera
★ 2.8mm lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in microphone for real-time audio security
★ Support on-board storage up to 512 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
12MP Visual Experience: More Detailed Images
Cutting-edge 12MP security camera, delivering unrivaled clarity with a staggering 4096 x 3072 resolution. See every detail in vivid precision, ensuring nothing escapes your watchful eye. The 2.8mm@F1.6 lens guarantees impeccable low-light performance, capturing crisp, well-defined images even in challenging conditions.
Optimize Your Security with Flexible Lighting Option
You can select the lighting mode that best suits your requirements: 24/7 color, IR or smart dual-light. In smart dual-light mode, the camera maintains infrared illumination until an event triggers color imaging to capture critical details. White light and infrared fill light is up to 30 m distance for bright night imaging.
Elevate Security Precision: Deep Learning Algorithms
With Motion Detection 2.0, rest assured that you’ll only receive alerts for relevant activity – eliminating 99% of unwanted notifications caused by animals, weather elements, or non-essential objects. Our system intelligently focuses on human and vehicle shapes by default, drastically reducing false alarms.
Cutting-edge Technology to Ensure Image Clarity
With a remarkable 120dB WDR, it ensures exceptional performance in high-contrast lighting conditions. The BLC, 3D DNR, and HLC collectively guarantee crystal-clear visuals, eliminating overexposed or underexposed areas. Say goodbye to image noise and hello to pristine, detailed footage.
0TB:
1TB:
2TB:
4TB:
NVR:
| Video & Audio | Decoding Format | H.264+/H.264/H.265/H.265+ |
| IP Video Input | 8CH PoE | |
| Video Output | HDMI up to 4K (4096 × 2160), VGA up to 1080p(1920 × 1080) | |
| Audio Input/Output | 1/1 RCA | |
| Incoming/outgoing Bandwidth | 80/80 Mbps | |
| Max Recording Resolution | Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) | |
| Max Playback Resolution | Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) | |
| Max Playback Channel | 8CH | |
| Max Playback Capacity | 1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) | |
| Hard Drive | HDD | 1 SATA Interface |
| HDD Capacity | Up to 8 TB Capacity | |
| External Interface | Network Interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
| PoE | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at | |
| USB interface | USB 2.0*2 | |
| Smart Function | Deep learning | 8-ch Human and vehicle targets detection(Need IP camera support) |
| 4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) | ||
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection(Need IP camera support) |
|
| General | Operating Power | DC 48 V |
| Power Consumption | ≤10 W (Without HDD and PoE) | |
| PoE: Max 25.5 W for Single Port | ||
| Working Temperature | 14 °F ~ 131 °F/-10 °C ~+55 °C | |
| Dimensions (W X H X D) | 12.4” X 9.4” X 1.9”/315 X 240 X 48 mm | |
| Weight (Without Hard Disk) | 2.2 lbs/1 kg |
Camera:
| Camera | Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Max resolution | 4096*3072(12MP) | |
| Main Stream | 50 Hz: 10 fps@4096*3072, 12.5 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720) 60 Hz: 10 fps@4096*3072, 15 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720) |
|
| Substream | 50 Hz: 12.5 fps (1280*720, 640*480, 640*360) 60 Hz: 15 fps (1280*720, 640*480, 640*360) |
|
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
|
| Video Bitrate | 32 Kbps – 16 Mbps | |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC | |
| Audio Input | Built-in Microphone, record with audio | |
| Lens | 2.8 mm | |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR | |
| Angle of View | Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° | |
| Supplement Light Type | Smart Dual-Light, IR, White Light | |
| Supplement Light Range | Up to 30 m | |
| Motion detection 2.0 | Supoort, include Human & Vehicle detection | |
| Image Enhancement | BLC, HLC, 3D DNR | |
| Wide Dynamic Range | 120 dB WDR | |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP | |
| API | Open Network Video Interface Version 19.12 (Profile S, Profile T, Profile G) | |
| Region of Interest (ROI) | 1 fixed region for main stream | |
| Privacy Mask | 4 programmable polygon privacy masks | |
| General Function | Rotate mode, mirror, password protection, remote access | |
| Ethernet | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
| General | Housing | Metal & Plastic |
| Color | White | |
| Storage | Built-in microSD/SDHC/SDXC Slot, up to 512 GB | |
| Hardware Reset | Yes | |
| Operating Power | DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W | |
| Operating Temperature | -22 °F – 140 °F/-30 °C – 60 °C | |
| Indoor/Outdoor Use | Indoor/Outdoor | |
| Interface Protection | IP67 & IK08 | |
| Dimension (L X W X H) | Ø 121.5 mm × 97.6 mm (Ø 4.78″ × 3.84″) | |
| Weight | Approx. 550 g (1.2 lb.) |
