Description
Description

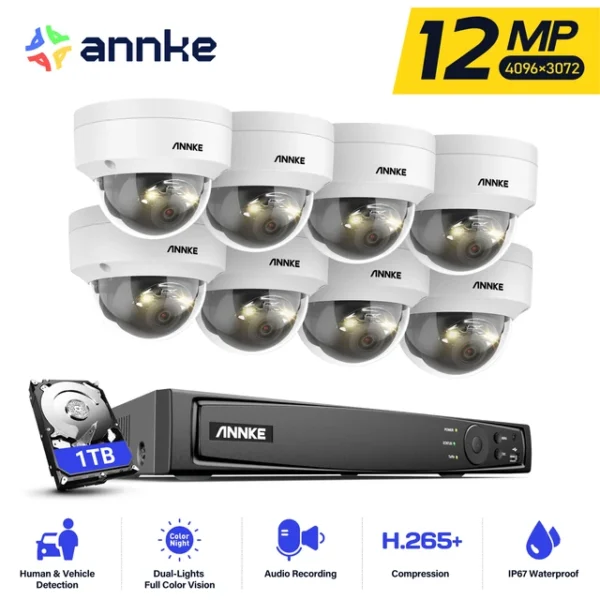

★ 12MP smart dual light dome network camera
★ 2.8mm lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in microphone for real-time audio security
★ Support on-board storage up to 512 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
12MP Visual Experience: More Detailed Images
Cutting-edge 12MP security camera, delivering unrivaled clarity with a staggering 4096 x 3072 resolution. See every detail in vivid precision, ensuring nothing escapes your watchful eye. The 2.8mm@F1.6 lens guarantees impeccable low-light performance, capturing crisp, well-defined images even in challenging conditions.
Optimize Your Security with Flexible Lighting Option
You can select the lighting mode that best suits your requirements: 24/7 color, IR or smart dual-light. In smart dual-light mode, the camera maintains infrared illumination until an event triggers color imaging to capture critical details. White light and infrared fill light is up to 30 m distance for bright night imaging.
Elevate Security Precision: Deep Learning Algorithms
With Motion Detection 2.0, rest assured that you’ll only receive alerts for relevant activity – eliminating 99% of unwanted notifications caused by animals, weather elements, or non-essential objects. Our system intelligently focuses on human and vehicle shapes by default, drastically reducing false alarms.
Cutting-edge Technology to Ensure Image Clarity
With a remarkable 120dB WDR, it ensures exceptional performance in high-contrast lighting conditions. The BLC, 3D DNR, and HLC collectively guarantee crystal-clear visuals, eliminating overexposed or underexposed areas. Say goodbye to image noise and hello to pristine, detailed footage.
0TB:
1TB:
2TB:
4TB:
NVR:
|
Video & Audio |
Decoding Format |
H.264+/H.264/H.265/H.265+ |
|
IP Video Input |
8CH PoE |
|
|
Video Output |
HDMI up to 4K (4096 × 2160), VGA up to 1080p(1920 × 1080) |
|
|
Audio Input/Output |
1/1 RCA |
|
|
Incoming/outgoing Bandwidth |
80/80 Mbps |
|
|
Max Recording Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
|
Max Playback Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
|
Max Playback Channel |
8CH |
|
|
Max Playback Capacity |
1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
|
|
Hard Drive |
HDD |
1 SATA Interface |
|
HDD Capacity |
Up to 8 TB Capacity |
|
|
External Interface |
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
|
PoE |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
|
USB interface |
USB 2.0*2 |
|
|
Smart Function |
Deep learning |
8-ch Human and vehicle targets detection(Need IP camera support) |
|
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) |
||
|
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
|
General |
Operating Power |
DC 48 V |
|
Power Consumption |
≤10 W (Without HDD and PoE) |
|
|
PoE: Max 25.5 W for Single Port |
||
|
Working Temperature |
14 °F ~ 131 °F/-10 °C ~+55 °C |
|
|
Dimensions (W X H X D) |
12.4” X 9.4” X 1.9”/315 X 240 X 48 mm |
|
|
Weight (Without Hard Disk) |
2.2 lbs/1 kg |
Camera:
|
Camera |
Image Sensor |
1/2.7″ Progressive Scan CMOS |
|
Max resolution |
4096*3072(12MP) |
|
|
Main Stream |
50 Hz: 10 fps@4096*3072, 12.5 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720) |
|
|
Substream |
50 Hz: 12.5 fps (1280*720, 640*480, 640*360) |
|
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
|
Video Bitrate |
32 Kbps – 16 Mbps |
|
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
|
Audio Input |
Built-in Microphone, record with audio |
|
|
Lens |
2.8 mm |
|
|
Min. Illumination |
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
|
|
Angle of View |
Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° |
|
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
|
Supplement Light Range |
Up to 30 m |
|
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
|
Wide Dynamic Range |
120 dB WDR |
|
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
|
|
API |
Open Network Video Interface Version 19.12 (Profile S, Profile T, Profile G) |
|
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
|
Privacy Mask |
4 programmable polygon privacy masks |
|
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
|
General |
Housing |
Metal & Plastic |
|
Color |
White |
|
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
|
Hardware Reset |
Yes |
|
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
|
Interface Protection |
IP67 & IK08 |
|
|
Dimension (L X W X H) |
Ø 121.5 mm × 97.6 mm (Ø 4.78″ × 3.84″) |
|
|
Weight |
Approx. 550 g (1.2 lb.) |
